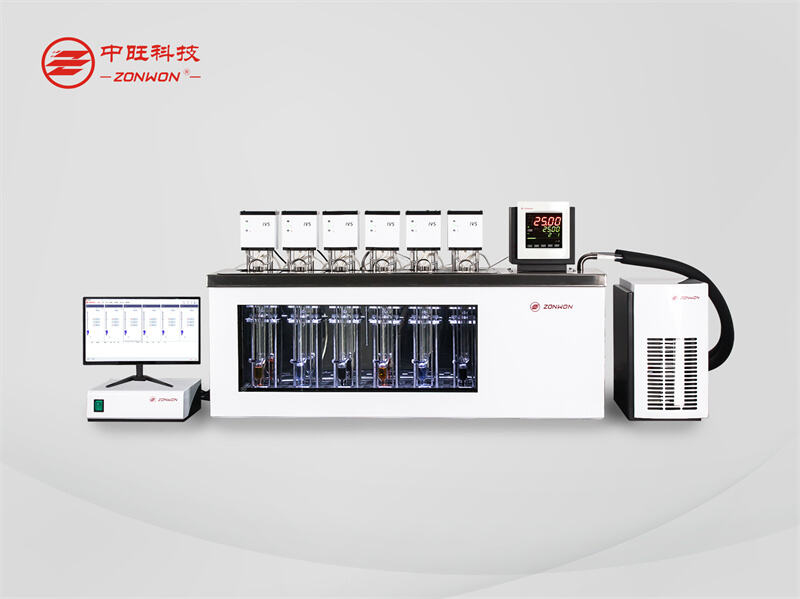

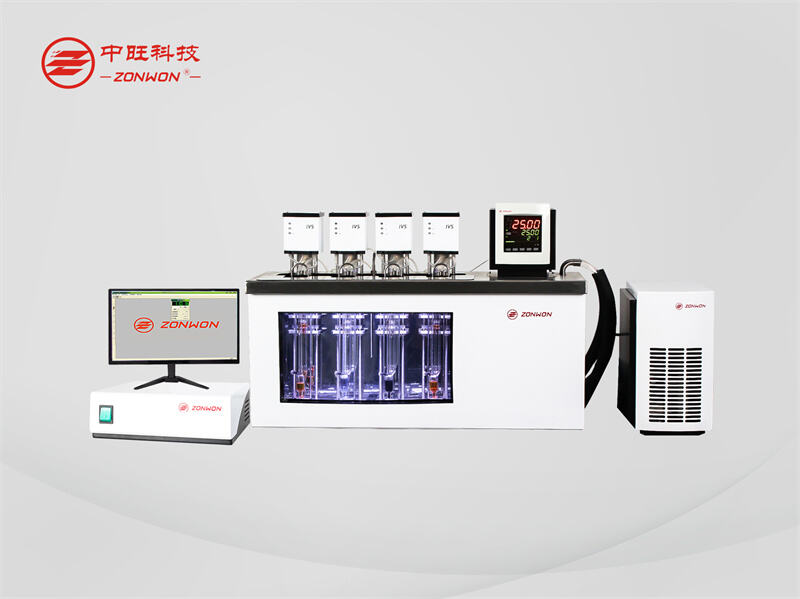

Designed for Ubbelohde viscosity Measurement automatically, wildly applied to measure the kinematic viscosity, dynamic viscosity, relative viscosity, specific viscosity,instrnsic viscosity, average molecular weighted. Including: Viscometer water bath, cooling system, glass capillary tube, tube holder, Precision thermometer.
Place of Origin: |
China |
Brand Name: |
ZONWON |
Model Number: |
IVS300-2/IVS300-4/IVS300-6 |
Minimum Order Quantity: |
1 Set |
Packaging Details: |
Wooden box |
Delivery Time: |
30 days after receipt of deposit payment |
Payment Terms: |
50% deposit, 50% |
Supply Ability: |
30 sets /month |
1. Different names for the product; Viscometer, viscosity meter, iv tester, kinematic viscometer, digital viscometer, Ubbelohde viscometer, capillary viscometer, automatic viscometer.=
2. Main uses viscosity determination
3. Core specification parameters: Temperature control range 15-90℃
Youdaoplaceholder0 range 0.3- 100,000 (mm²/s)
Test the uniformity of the temperature field ≤±0.01℃
Intrinsic viscosity (limit viscosity)
Relative viscosity value
Specific viscosity value (viscosity number)
The K value of Fickentscher
Viscous average molecular weight value
Kinematic viscosity value
Degree of polymerization
Dynamic viscosity Measurement standard/absolute/percentage deviation value Logarithmic viscosity (logarithmic stickiness) time and its average
Samples: PET, PA(PA66/PA11/PA12 etc),PVC,PS,PE,PP,PC,POM,PPO,PBT,PSU,PPS,PEEK,PI,PAM,PAA,PGA,PLA,PLGA,PBAT/PBS/PHA/PPC/PCL,PVDF,PVF,PVDC,PTT,PPDO,HA,PVP,PLLA,PEO,PU,PAN,PIB,PMMA,ACR,TPU,PSU,SAN,EC,SB,PIB,PS,PCT,TP,PEN,HTPA，Cellulose, chitin, polyoligosaccharides, polychitose, enzymes, insulating paper, aramid, acrylic resin, cotton pulp/wood pulp, hydrosol, lubricating oil, etc.
|
Model |
IVS300-2 |
IVS300-4 |
IVS300-6 |
|
Measurement time range |
0.001-9999.999(s) |
0.001-9999.999(s) |
0.001-9999.999(s) |
|
Temperature control range |
15-90℃ |
15-90℃ |
15-90℃ |
|
Viscosity range |
0.3-100000(mm²/s) |
0.3-100000(mm²/s) |
0.3-100000(mm²/s) |
|
Test the uniformity of the temperature field |
≤±0.01℃ |
≤±0.01℃ |
≤±0.01℃ |
|
Timing accuracy |
0.001s |
0.001s |
0.001s |
|
Wireless distance |
30m |
30m |
30m |
|
Measuring heads |
2 |
4 |
6 |
|
Water bath volume(L) |
25 |
33 |
41 |
|
Main unit size(mm) |
640×270×600 |
850×270×600 |
1020×270×600 |
|
Chiller size (mm) |
200×360×380 |
200×360×380 |
200×360×380 |
|
Power/Power |
220V50HZ/1200KW |
220V50HZ/1200KW |
220V50HZ/1200KW |
Display screen controls 2/4/6 measuring heads at the same time
One point method / single concentration method
Composed of Stainless-steel material
Automatic cleaning instead of manual cleaning
No need to disassemble Ubbelohde viscometer to avoid manmade damage
All viscosity formulas present in the system, testing personnel can use them conveniently
Data statistics function
Provision of basic data for controlling quality of the products
Can obtain intrinsic viscosity through one point method
