Sample Dissolver P8/P12/P16

Designed for polymer dissolving, it’s a sample preparation machine. It provides constant

and precision temperature. It can dealing with 8 samples at a time. Temperature, rotor and

timing can be set by operator. Automatically stops and alarm when the sample dissolving process is finished.

Introduction

Place of Origin:	China
Brand Name:	ZONWON
Model Number:	P8/P12/P16
Minimum Order Quantity:	1 Set
Packaging Details:	Wooden box
Delivery Time:	30 days after receipt of deposit payment
Payment Terms:	50% deposit, 50%
Supply Ability:	30 sets /month

Quick Detail

1. Different names for the product; Sample dissolver, magnetic stirrer, heating bath,hot plate stirrer,heating stirrer
2. Main uses: providing heating and stirring while sample dissolving
3. Core specification parameters: temperature ranges room temp to 185 degrees

Applications

Sample dissolving during Polymer viscosity determination.

Providing heating/stirring/timing while polymer dissolving.

Specifications

Model	P8	P12	P16
Dissolving method	Magnetic stirring
Positions	8	13	16
Sample bottle	50/75ml
Speed range	200-1500 rpm
Temperature range	Room temp~185 degree
Temperature precision	±1 ℃
Machine size(mm)	260585150
Power	220V 50hz 2kw

Competitive Advantage

Metal Bath PK Water Bath, Oil Bath
Metal Bath	Clean, Precision Temperature Control
Water Bath	Water steam will enter the bottle. Water level decrease with the heating
Oil Bath	Oil evaporation affects experiment accuracy. Hard to clean the bottle

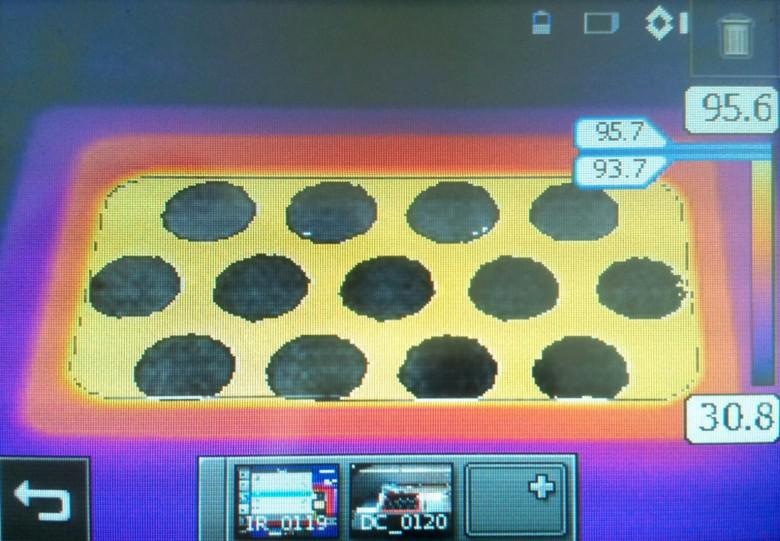

Remarks：Infrared thermal image shows the sample disk temperature ranges from 93.7℃ -95.7℃,Temperature precision at ±1℃.

● It can place 50ml/75ml sample bottles, conical flasks and other vessels;

● The thermostatic block is machined from a monolithic metal block to ensure uniform temperature in each hole;

● Magnetic stirring with speed and temperature adjustment and timer setting;

● Widely used for stirring solvents of different viscosities;

● The height of the sink hole of the thermostat block is higher than the liquid level in the bottle to avoid inconsistent dissolution of samples by airflow disturbance;

● The instrument is noiseless, with very low failure rate and very stable performance.
